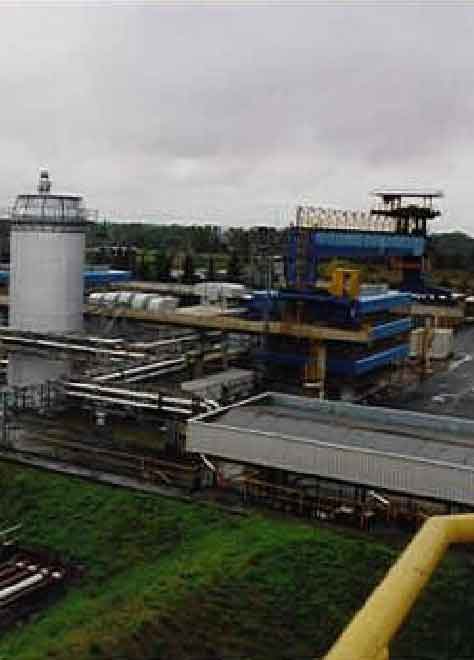

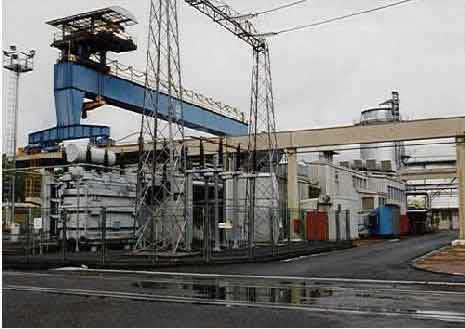

Fiat Plant

In the process of locating and purchasing surplus power plant equipment, Genassis, Inc. frequently becomes aware of entire plants or portions of thereof which are for sale.  We are also asked from time to time to assist and broker manufacturing and power generation plants. This may entail the sale of the entire plant as a single unit or the liquidation of specific plant components. Examples of these components include: cranes, diesel generator sets, turbines, boilers, tanks and process equipment.


For Sale:

  • 1 ea  52 MW  Shin Nippon, 60 Hz. cross compound condensing steam turbine generator rated 1400 psi @ 730F.

  • 3 ea used 115 MW GE condensing turbine generator rated 1300 psi @ 950F.

  • 1 ea used 112 MW GE condensing turbine generator, reheat, 1450 psi @ 1000F / 1000F.

  • 1 ea used 112 MW Westinghouse condensing turbine generator reheat, 1450psi @ 1000F /1000F.

  • 1 ea used 10 MW GE condensing turbine generator, 400 psi @750F.

  • 1 ea used 4 MW GE condensing turbine generator, 400 psi @ 750F.

  • 1 ea used 4 MW Westinghouse condensing turbine generator 385 psi @ 650F.

  • 2 ea used 700 KW Coppus Murray non-condensing, low pressure trubine generators.

  • 2 ea used 44 MW GE condensing  turbine generator, reheat, 1450 psi @ 1000F /1000F, mfr 1964.

  • 3 ea Three 7FA Gas Turbine Units (spec).

  • 1960’s vintage, 75 MW 60 hz STG, gas fired plant. (Boiler description, photos and description) (811)

  • Unused 2002 new surplus Toshiba 234 MVA generator end.  Warehouse stored and heating elements installed. 234,000 KVA, 60 Hz, 0.85 PF, 18 KV, 3600 RPM Designed for use with a GE 7FA+e 7241 Combustion Turbine. (photo) (121)

  • 2250KW EMD generators; two engines in containers and a separate controls container. (photos 1, 2, 3) (8101)

  • 156 MW GE reheat condensing unit, rated 1800# @ 1000/1000F, H2 cooled generator rated 176,470 KVA @ 1/2# H2, 106 MVA max air cooled; mfr 1955, still in place. (7201)

  • 3 MW GE non-condensing unit rated 600# @ 750F, 125# exhaust, generator rated 3750 KVA, 2400V @ 60 Hz. (7201)

  • 6.5 MW GE single auto extraction non-condensing STG rated 600# @ 700F.; extraction at 160# exhaust at 60#; mfr 50's; refurbished 1992. (7102)

  • 2 MW GE single extraction non-condensing STG rated 1250# @ 950F.; extraction at 600#; exhaust at 70 #. (7102)

  • Two (2) 20 MW double auto extraction condensing STG rated 850# @850F; extractions at 425 & 125 #; mfr 60's. (7102)

  • 7500KW General Electric non-condensing steam turbine generator. Turbine specs: 7500KW, 3600 RPM, 12 State, 850# at 850 F., 100# backpressure.  Generator specs: ATB-2, 3600 RPM, 2400/4160 volt, 10714 KVA, 0.7 P.F. (6602)

  • Nine (9) Low Hour 830KW natural gas generators. Units manufactured in 2001 and only run for testing and preventive maintenance.
    (Spec) Photos 1, 2, 3, 4, 5) (6106)

  • 2500KW, 3150KVA Allison 501-K 14A Gas Turbine Generating Set.  Unit is skid-mounted with enclosed, sound attenuated gas turbine compartment, open gear and generator. The gas turbine is designed to run on light #2 oil. Easily convertible to natural gas. The turbine is direct connected to a 3000HP Falk reduction gear; input RPM 13,845 output RPM 900, S. F. 1.08 with 15:383 ratio. Connected through couplings to an EMD Model A-20-A 2400/4160V., 900RPM, 60 hertz generator. Stator insulation 'H', stator temperature rise 56°C, rotor insulation 'F', rotor temperature 50°C with exciter system. Unit is equipped with governor and air start system consisting of motor driven compressors with starters and air receiver tanks, gauge panel, lube system, au filtration system and critical grade exhaust silencer with connection. Equipped with full complement of free standing Allis Chalmers switch gear for auto start and parallel and synchronizing operation, made up of three (3) panels containing 5kv main line, medium voltage metal clad draw out breaker and metering section will PT's and CT's, etc. Turbine, gear and generator are integrally connected, piped and wired. Manufactured in 1968/69, unit has 968 hours of use since new and 1373 starts. Approx. dimensions: 22' 5" L x 6' 7" W x 8' 0" H. Approx. Shipping Weight: 40,000 lbs. (4051)

  • 470MW (553064KVA) Hitachi condensing auto extraction turbine generator set; Stages : 17 (6 HP, 4 IP, 7 LP); Initial Pressure : 2400 PSIG; Initial Temperature : 1000°F; Automatic Extraction : 2400 PSIG; Exhaust Pressure/Vac 2.5” HGA; Speed : 3600 RPM; Generator has a capacity of 553,064 KVA; voltage of 3/60/24000V; an Exciting Voltage of 440 V.; Speed 3600 RPM; P.F. 85%; 13305 Amps and a Field Current of 4036 A.

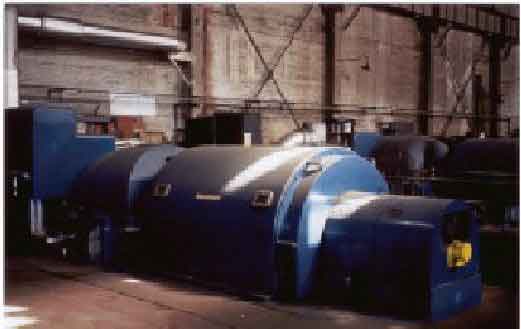

    [turbine] [Fiat Plant]
