Here is a listing of training aids and mock-ups created by utilitites. It will give you an idea of what is happening in the industry. Send an e-mail to info@genassis.com if you would like to speak to a contact at the plant. Plants are listed in alphabetical order.

- Motor / Pump vertical alignment mock-up built by Genassis. (1, 2, 3, 4)

- Arkansa Nuclear ITE K-225 ground truck supplied by Genassis. (1, 2)

- Beaver Valley's flow loop and control panel. (1, 2, 3)

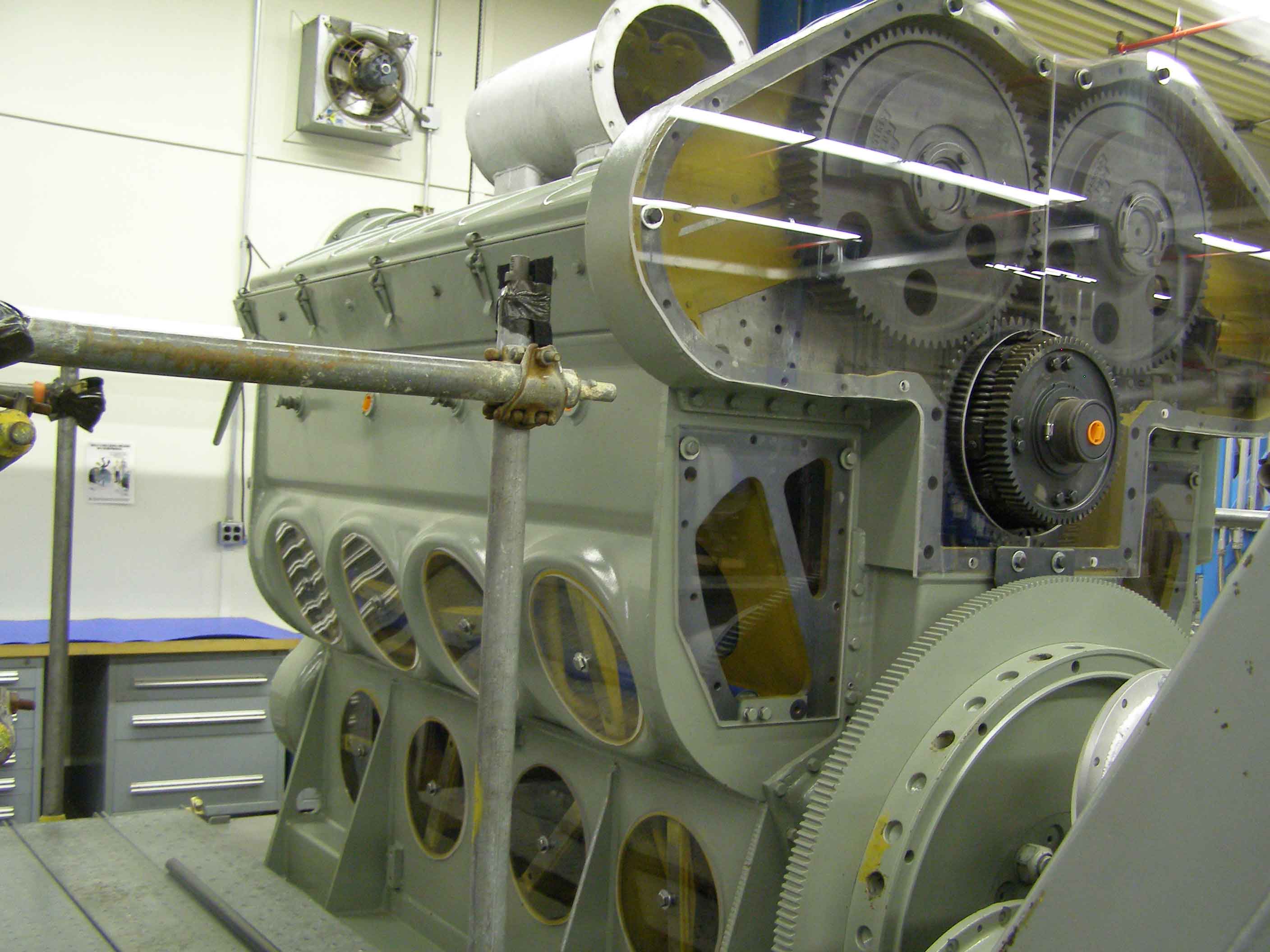

- Beaver Valley EMD diesel. (Photo)

- Beaver Valley Bingham 16x18x24 CD feedwater pump. Supplied by Genassis. (Photo)

- Beaver Valley 7100 control panel. (Photo)

- Beaver Valley DB50 and DS416 reactor trip breakers (Photo)

- Beaver Valley SCI battery charger. (Photo)

- Beaver Valley Westinghouse MOV on stand. (Photo)

- Beaver Valley IR split case pump. (Photo)

- Beaver Valley General Atomics Rad monitors. (Photo)

- Braidwood KSV-16T Diesel (write-up) supplied by Genassis. Photos (1, 2, 3)

- Braidwood's flow loop. (1, 2, 3, 4, 5, 6, 7)

- Braidwood Anchor Darling MSIV mock-up and Ops LLRT mock-up (Isometric Drawing). Arrows indicate physical extent of LLRT mock-up. (Photo)

- Braidwood Westinghouse 10” swing check, 2500#, SS, BWE, Westinghouse C88 supplied by Genassis. (1, 2)

- Braidwood Parker Miller C52BXN-12.00-8.00-1.375-N11-9 actuator.
12" Counterbalance 6 1/2" stop tube on cap end; 1 1/2" net stroke stroke spring extend cyclinder; 5000 LBS preload. Supplied by Genassis. (1, 2)

- Brunswick relay trainer w/ faults wired into cases supplied by Genassis. (1, 2, 3, 4)

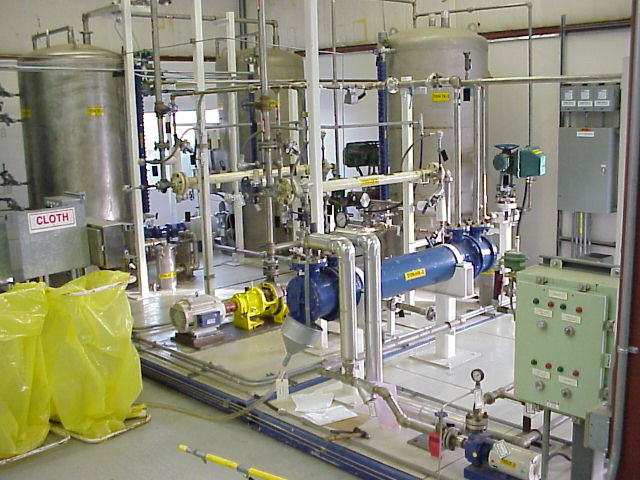

- Columbia's flow loop. (1, 2, 3)

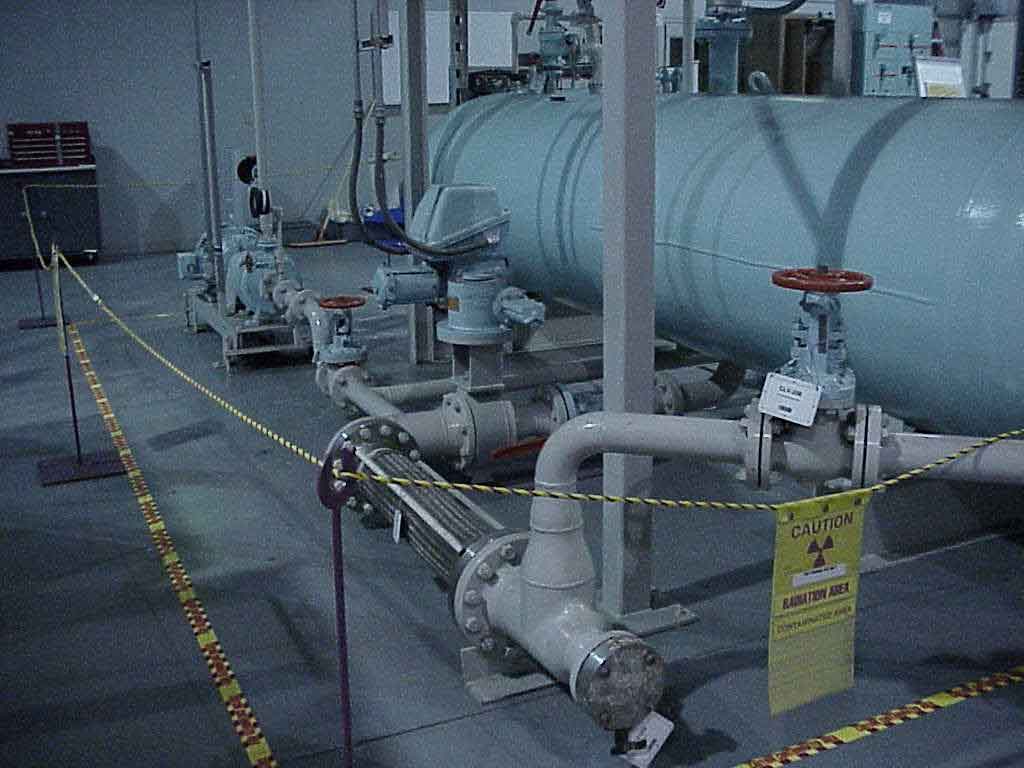

- Crystal River's flow loop. (1, 2, 3, 4, 5, 6, 7)

- Duke pumps mounted on stands supplied by Genassis.. (1, 2, 3)

- Exelon Services and Training Center; Rigging jig that allows weights to be placed (four 25 pound weights shown) in different configurations internally. Smaller box (which be used to hold a bag of sand) is included. Supplied by Genassis. (1, 2, 3, 4)

- Exelon Services and Training Center; Pump / motor 1 X1/12 X 6, new motor, ss w/ stuffing box seal on pump shaft. (Photo)

- Fermi RCIC pump; Bingham 6X6X10-1/2CP Centrifugal Pump. (Photo)

- Fermi RCIC Terry GS-2 Turbine. (Photo)

- Fermi MSIV; Atwood & Morrill H21150M 26" globe valve. (1, 2)

- Fermi pump mock-up w/non-functional motor, rigid coupling w/adj between the flanges on a stand w/casters built by Genassis. (1, 2, 3)

- Fermi Main Steam Safety Relief Valve; Target-Rock 7567F-010-10; 6X10. (1, 2)

- Hanford; Tip Indexer. (Photo)

- Slide show of Harris' flow loop (may take some time to load due to size of the file).

- Harris; Cameron TA2000 Oil-Free centrifugal compressor (no controls, motor or accessories) supplied by Genassis. (1,2)

- Hatch; flow loop. (1, 2, 3, 4, 5)

- Hatch; Union TD-50 diesel supplied by Genassis (1, 2)

- Hope Creek; Vacuum breaker using 3" relief valve supplied by Genassis. Stand created by HC shop. (1, 2, 3)

- Kewaunee relay trainer w/o faults wired into cases. Supplied by Genassis. (1, 2, 3, 4)

- LaSalle substation training mockup supplied by Genassis. (Photo)

- Millstone's flow loop. They interface it to 7300 and SPEC-200 instrumentation and thus are able to duplicate most in-plant instrument loops and perform advanced PID loop tuning. (1, 2, 3, 4)

- Millstone; Ingersoll Rand HMTA-7 stage, free turning pump. Originally an 8 stage pump modified by Flow Serve to provide one dummy stage. Supplied by Genassis. (1, 2)

- Slide show of Monticello's flow loop (may take some time to load due to size of the file).

- Monticello; 16" Fisher 9211 valve supplied by Genassis. Cleaned, painted, new hardware, switches and packing. This 9211 does not have the air inlet to seat the seal but may be able to modify with a dummy inlet. Photos are of the 9211 alone and inserted into their training aid. (photos 1, 2, 3, 4, 5, 6)

- North Anna; Ingersoll Rand 5HMTA-7 supplied by Genassis. (1, 2, 3)

- OPPD; Gould Pump Cutaway supplied by Genassis. (photo)

- Palo Verde; Operational MSIV (photo)

- Palo Verde; SG mockup (photos 1, 2)

- Palo Verde Carrier 19FA chiller with simulator control panels.
(1, 2, 3)

- Palo Verde; Reactor multi-stud tensioner with stud turning tool. (photo)

- Palo Verde; Ingersol Rand XLE-N compressor. (photo)

- Palo Verde; RCP Seal housing mockup. (photo)

- Palo Verde; Ingersol Rand High Pressure Safety Injection pump. (1, 2)

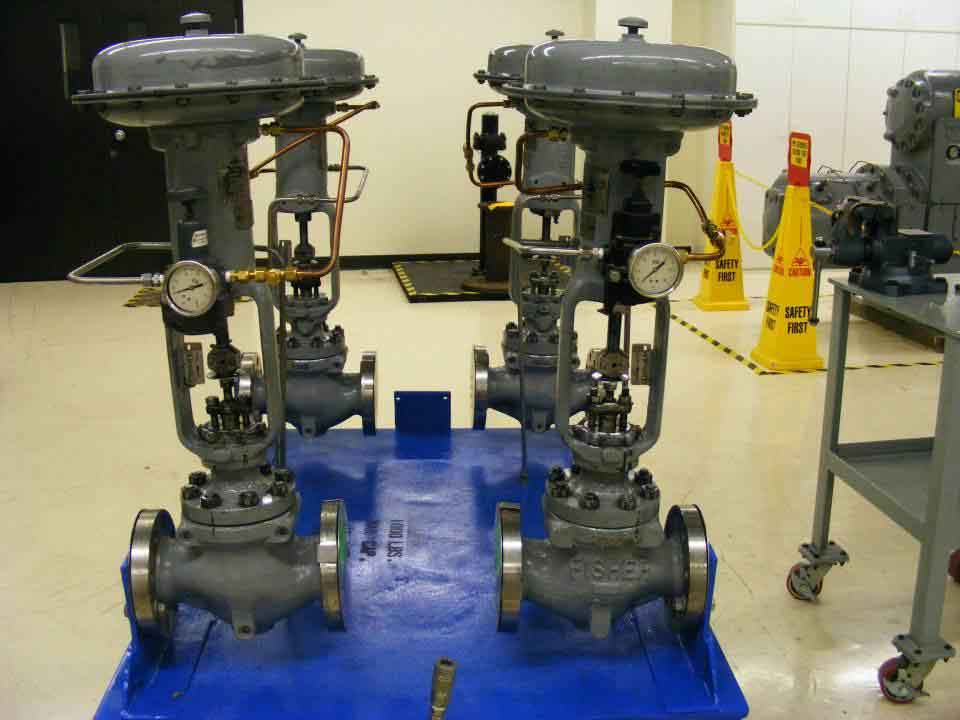

- Palo Verde; Fisher Control Valves. (photo)

- Palo Verde; Crosby relief valve test bench. (photo)

- Palo Verde; AFW pump with Terry Turbine and with Gimple trip throttle assembly. (photo) Power point presentation of the valve. (Gimple)

- Pipefitters Local 597 2" Powell pressure seal valves supplied by Genassis. (Photo)

- PSE&G; verical pump mock-up supplied by Genassis; 10", keyed impellers w/split rings, iron bowl wear rings, bronze impeller wear rings, discharge head and packing box mounted on a stand with casters. (photos 1, 2)

- PSE&G Westinghouse SRM, IRM and PRM training aids. (Description) (photos 1, 2, 3, 4).

- Quad Cities 6" 900# Pressure Seal Crane Gate Valve. (photo)

- Sequoyah; Gould 3171 single stage pitpPump supplied by Genassis. (photo)

- STP flow loop. (1, 2, 3)

- STP ITE LK8 Cell by Genassis, Inc. (photos 1, 2, 3)

- STP RHR coupling & mech seal. (photos 1, 2)

- STP reactor coolant pump bowl trainer. (photo)

- STP HVAC air flow trainer. (photo)

- STP 7300 cabinet. (photo)

- STP Main Process Workstations (Flow, Level, Temperature, Pressure)

- STP reactor coolant pump mechanical seal assy. (photo)

- STP York chiller Model HT D1 01-BB A. (photo)

- STP Main feedwater pump Woodward speed controller. (photo)

- STP main turbine reheater controls cabinet. (photo)

- STP Bently Nevada integrated vibration monitoring system. (photo)

- STP control room control panel for the main turbine analog EHC cabinet. (photo)

- STP main turbine analog EHC cabinets. (photo)

- STP main steam dump valve. (photo)

- STP high head / low head safety injection motor. (photo)

- STP Westinghouse WTA voltage regulator. (photo)

- STP Valtek steam generator blow down valve. (photo)

- STP cut-away of a Fisher AOV w/ Pacific globe valve supplied by Genassis. (photo)

- Surry 5HK350, 3000 amp ground and test device supplied by Genassis. (1, 2, 3)

- Susquehanna - Bettis actuator / 18" butterfly valve mock-up on portable stand built by Genassis. (1, 2)

-Susquehanna - Taper Bearing Installation mock-up. (1, 2); good video on how it can be used. (video)

- TMI's flow loop. Note the mural around the room simulating plant environment. (1, 2, 3, 4, 5, 6, 7, 8)

- Turkey Point 1X2-10/3196-MT rebuilt pump/316ss ; NEW mechanical seals; new 25 hp motor for flow loop. (photo)

- Turkey Point one of Two 1-1/2 x 2 - 9/33/3316-S Pumps; rebuilt; cast iron case; bronze fitted w/316L shaft; new mechanical seals; new 30 HP motor for flow loop. (photo)

- Turkey Point flow loop (in-progress construction) (1, 2, 3, 4)

- Vermont Yankee flow loop. (1, 2, 3)

- Waterford Gould pump with motor, Centrifugal blower with motor mounted on skid with casters. (photo)

- Waterford Taper Bearing Demo built by Genassis (1, 2, 3)

- Wolf Creek flow loop. (photo)

- Wolf Creek I&C flow loop trainer. (photo)

- Wolf Creek refrigerant trainer. (photo)

- Wolf Creek electrical lab. (photo)

- Wolf Creek I&C lab. (photo)

- Wolf Creek Relay Trainer supplied by Genassis (1, 2)
